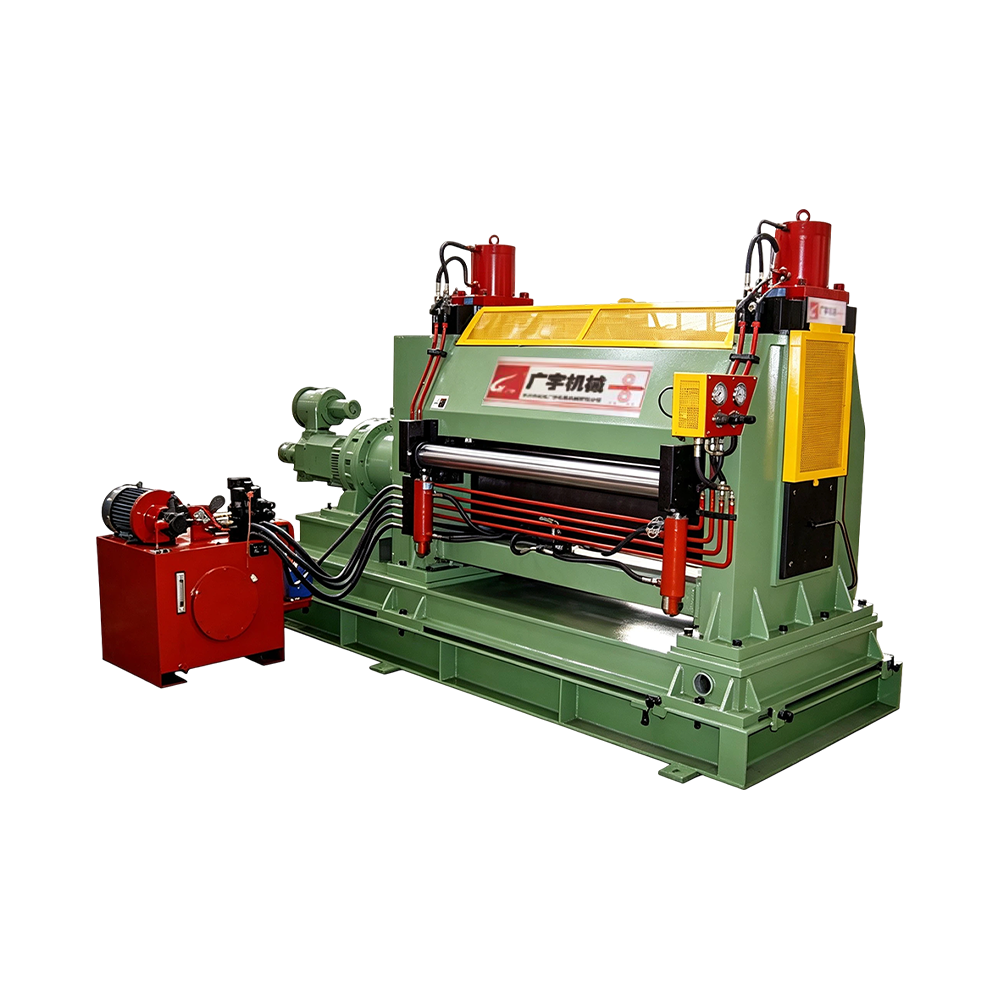

Single & Double-Sided Metal Sheet Embossing Machine

·One-Key Mode Switching
Self-developed upper/lower roller synchronized transmission closed-loop system enables instant switching between single-sided and double-sided modes. Double-sided pattern registration error ≤0.015mm, both sides formed in a single pass, doubling production efficiency and eliminating material loss from secondary processing.

·Self-Manufactured Matched Rollers
All rollers are 42CrMo alloy steel integrally forged and five-axis laser engraved with surface hardness HRC60–65. Complete machine-roller matching and commissioning completed before delivery, with pattern depth deviation across 0.1–3.0mm sheets controlled within ±0.02mm.

·Heavy-Duty Hydraulic Pressure System
Servo-hydraulic closed-loop pressure control with 50–120T adjustment range enables real-time fine-tuning according to material hardness. Ultra-thin 0.1mm aluminum foil processes without stretching; 3.0mm steel plates achieve full pattern depth without breakthrough. Pressure fluctuation below 3%.

·Variable-Frequency Speed Control
Optimized gearbox transmission with PLC synchronized control reaches 80m/min maximum speed. Integrated with uncoiler, edge guide, and tension winder, 1500mm wide sheets run straight without lateral deviation.

·Heavy-Duty Annealed Frame
Thickened steel plate frame with complete stress-relief annealing eliminates welding internal stress. Frame deformation ≤0.03mm under 24/7 full-load operation, stable service life exceeding 8 years without recalibration.

·Value Enhancement
Metal sheets gain improved bending strength, anti-slip performance, and decorative appearance with market value increasing 25%–40%. Standard texture library of 30,000+ patterns covering wood grain, brick, pebble, willow leaf, diamond anti-slip, orange peel, and brushed finishes.

Building exterior insulation decorative panels (color-coated steel and aluminum decorative wall panels with wood/brick/pebble grain for prefabricated exteriors and ceilings); industrial anti-slip safety tread plates (willow leaf/diamond patterns for workshop walkways, platform treads, truck flooring); elevator and kitchen appliance decorative panels (stainless steel etched/orange peel/brushed double-sided patterns for elevator interiors, cabinet doors, appliance panels); HVAC heat exchange aluminum plates (concave-convex flow-guiding patterns improving heat exchanger efficiency); container and box truck enclosure panels (reinforcing rib patterns for structural rigidity); hardware and storage rack components (anti-slip patterns for rack shelving and tool cabinet panels).
