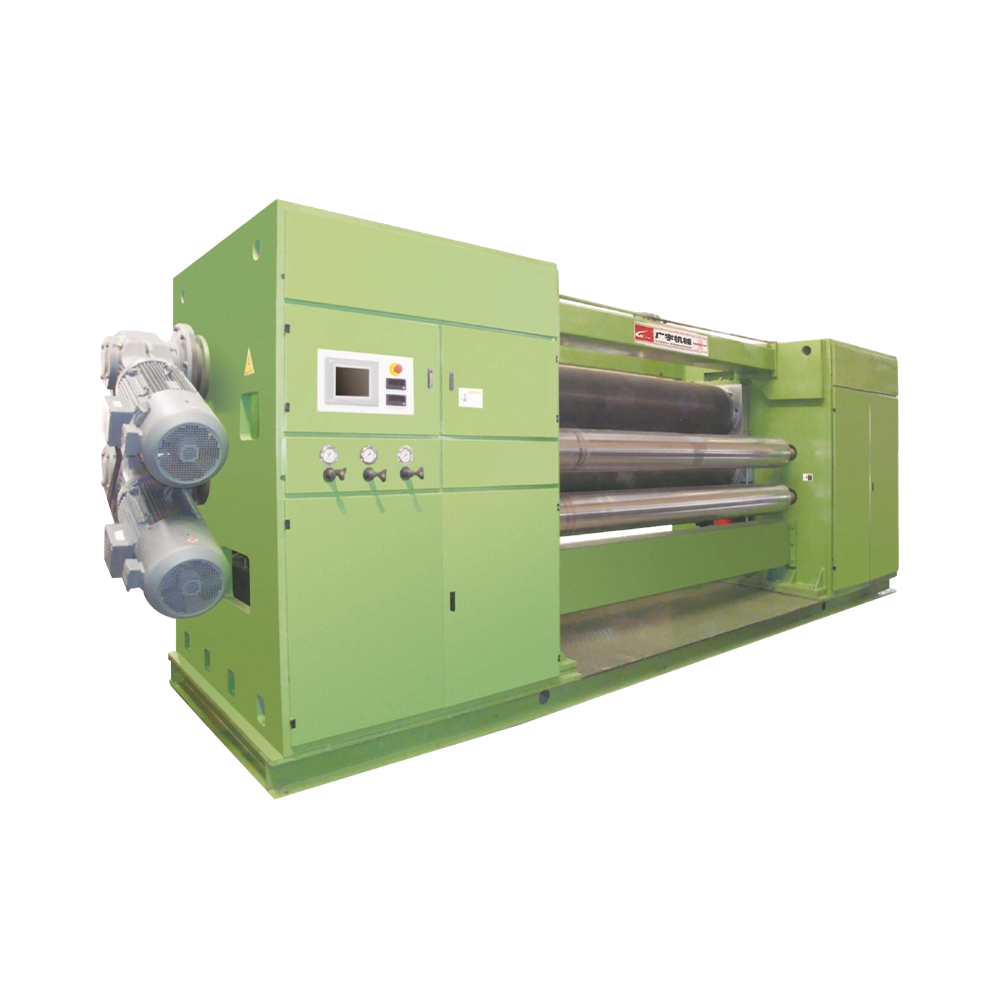

Standard Nonwoven Calendering Machine

Temperature uniformity across the roll surface is ≤±0.65°C, achieved through a peripheral deep-hole heat exchange structure and a closed-loop temperature control module; cross-machine basis weight deviation is ≤±2.5 g/m².

A servo-hydraulic pressurization mechanism allows for stepless linear pressure adjustment (0–110 N/mm) and maintains constant dynamic pressure across the line.

The roll axis crossing mechanism offers a fine-tuning range of 0–30 mm, compensating in real-time for deflection caused by pressure on wide rolls.

Each roll undergoes three stages of simulated-load dynamic balancing to G0.8 precision, and the frame undergoes stress-relief annealing, ensuring stability without vibration or deformation during long-term operation.

Thermal bonding of standard hygiene-grade nonwovens, including SMS and spunlace fabrics, for use in diaper backsheets, sanitary napkin components, and medical drapes.

Thermal bonding of ES fiber hot-air through-bonded nonwovens for lightweight products such as filtration and packaging materials.

Meeting the routine daily production needs of small-to-medium-sized nonwoven manufacturers that require equipment offering simple operation and maintenance.
