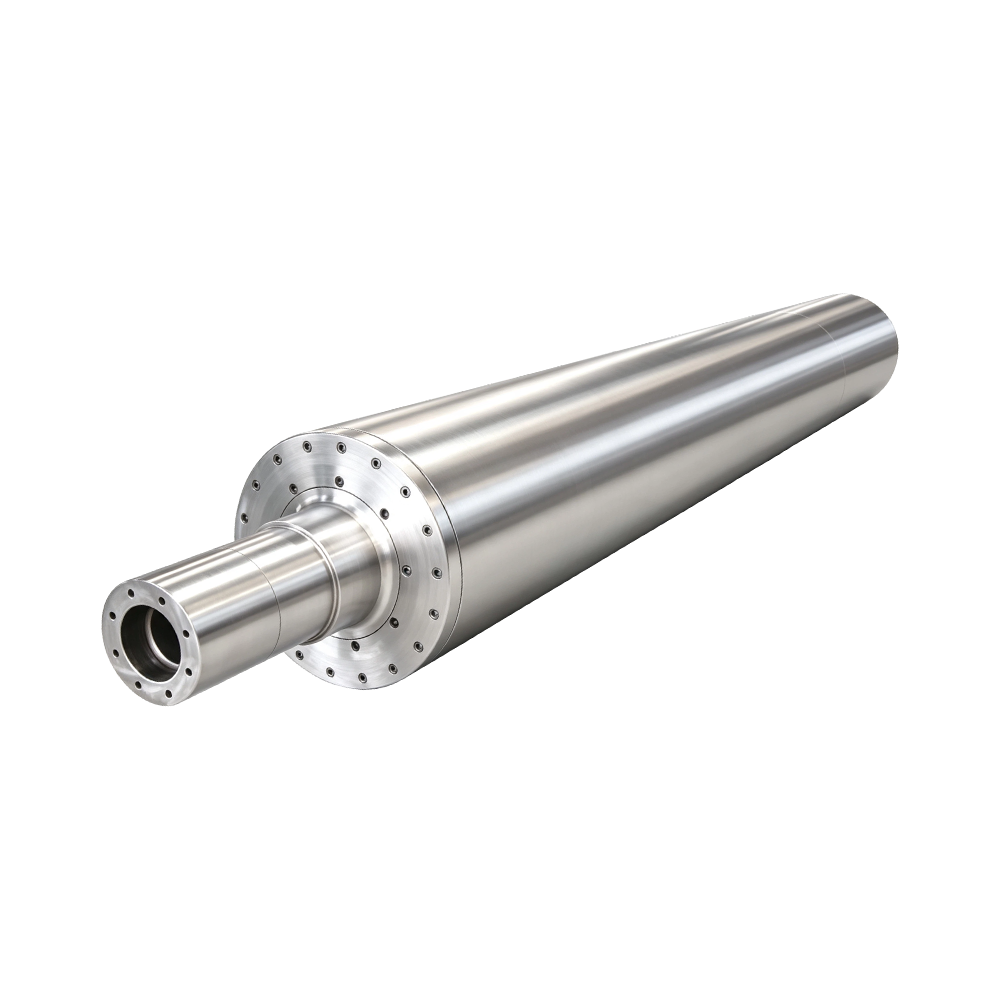

High-Performance Special Alloy Steel Embossing Roller

·Proprietary multi-alloy substrate formulation with surface hardness HRC60-65 delivers 120% longer wear life than conventional 40Cr steel rollers. Guangyu's exclusive 34CrNiMo6 + vanadium-molybdenum-titanium composite special alloy forged billet eliminates single carbon steel and common low-alloy materials. The uniform carbide distribution within the substrate prevents surface collapse and pattern blurring under high-temperature and high-pressure conditions. Effective processing mileage reaches 10 million meters under continuous high-speed embossing, significantly reducing downtime for roll replacement and re-polishing, suitable for 24/7 mass production in overseas factories.

·Laser-clad nano-graphene self-lubricating anti-corrosion composite coating resists acid, alkali, and film additive corrosion. The proprietary patented surface strengthening process deposits a nano-graphene-doped titanium carbide alloy layer on the roller body, providing self-lubricating properties that prevent material adhesion and glue residue when processing PE, PVC, EVA, and biodegradable PLA films. In corrosive environments involving plasticizers and disinfectants used in food packaging and medical nonwoven production, the coating delivers 3 times the corrosion resistance of conventional hard chrome plating, with no pitting or pattern defects even after long-term use.

·Integral forged roller body with deep-hole spiral temperature-control flow channels maintains whole-roller temperature difference ≤ ±0.8℃, eliminating pattern color deviation in wide-width high-speed production. Unlike welded splicing rollers, the integral forging eliminates welding stress deformation. Internally precision-milled double-layer spiral heat exchange channels ensure uniform thermal fluid circulation across the entire roller face, with temperature fluctuation within 0.8℃ for max width up to 3600mm. At high speed of 220m/min on film and nonwoven lines, pattern depth remains uniform, solving the common problem of shallow ends and over-pressed center, meeting stringent quality standards of European high-end films and hygiene materials.

·Five-axis German laser engraving achieves minimum pattern spacing of 0.2mm, pattern reproduction accuracy of 99.7%, and tolerance ±0.003mm. Equipped with imported 3D laser scanners and nine German fiber laser engraving devices, capable of deep engraving of leather grain, wood grain, diamond anti-slip patterns, micro-porous breathable textures, and high-end three-dimensional relief patterns. Ultra-fine micro-patterns are produced without tool breakage or edge burrs, delivering one grade higher pattern resolution than conventional CNC milled embossing rollers, specifically for high-end synthetic leather, automotive interior films, and optical light guide plate embossing, offering higher product premium.

·Anti-thermal-deformation special alloy metallurgical structure maintains roller runout ≤0.004mm under long-term operation at 280℃. Conventional alloy steel rollers tend to bend due to thermal expansion above 200℃. This special alloy undergoes triple stress-relief low-temperature tempering, stabilizing the metallurgical structure. On cast film and high-temperature hot-rolled nonwoven lines operating at 260-280℃, radial runout and coaxiality remain within 0.004mm, eliminating the need for mid-run cooling or calibration, greatly improving overall line efficiency.

·Material Performance: Conventional embossing rollers typically use 45# seamless steel pipe or 40Cr low-alloy steel, suitable only for low-temperature, low-speed, light-load general packaging. Guangyu's special alloy embossing roller uses military-grade multi-alloy forged billet with four strengthening elements (vanadium, molybdenum, titanium, nickel). Wear resistance: HRC60-65 hardness withstands continuous friction from film calcium carbonate fillers, nonwoven fibers, and leather tanning agents, maintaining clear patterns; overseas packaging clients have measured an 11-month extension in single roll service life. Temperature resistance: alloy softening point at 320℃ covers all plastic, nonwoven, and synthetic leather embossing process temperatures, with no softening or deformation at high temperatures. Anti-adhesion and corrosion resistance: the graphene cladding layer isolates plastic additives, leather oils, and disinfectants; cleaning is simple, with water wiping sufficient to remove residues, no aggressive cleaning agents needed, fully compliant with EU REACH environmental regulations.

·Precision & Stability: Full inspection equipment includes CMM, roundness tester, and infrared thermal imaging, with 100% factory inspection. Roller body straightness ≤0.003mm, end journal coaxiality ≤0.004mm; pattern depth tolerance across the whole roller ±0.003mm, ensuring uniform texture and no color difference on the entire roll; temperature-control flow channels pressure-rated to 1.6MPa, compatible with both water and thermal oil, no leakage or localized overheating; journals are integrally forged with the roller body, increasing load capacity by 60%, suitable for large-diameter, wide-width heavy-duty embossing units.

·Cost-Effectiveness: Extended service life reduces spare roll procurement, cutting annual roller purchasing costs by up to 40%; non-stick, corrosion-free surface reduces mid-run polishing and maintenance, adding 3-5 hours of daily production per line; uniform temperature reduces defect rates, decreasing film and nonwoven embossing rejects by 85%; the alloy substrate's toughness allows localized repair through coating restoration without full replacement, with repair cost only 30% of that for ordinary steel rollers.

·Special alloy forging customization: 34CrNiMo6 multi-alloy steel ingots forged under a 10,000-ton hydraulic press to eliminate welding layering risks; forgings naturally aged for 30 days at room temperature to release internal stress.

·Rough machining and triple stress-relief heat treatment: quenching and tempering + low-temperature tempering + vibration stress relief, stabilizing metallurgical structure to prevent thermal deformation during subsequent high-temperature operation.

·Five-axis CNC deep-hole milling of temperature-control flow channels: precision milling of double-layer spiral heat exchange channels with mirror-polished inner walls for unobstructed thermal fluid flow and uniform heat exchange.

·Integrated roller body and journal precision turning/grinding: imported CNC cylindrical grinders with three-stage progressive grinding ensuring high-precision roundness and straightness.

·Patented laser cladding of graphene alloy anti-corrosion/wear layer: fully automated laser cladding line with adjustable coating thickness of 0.08-0.15mm, metallurgical bonding with the substrate—no delamination or peeling risk (proprietary invention patent).

·German fiber laser precision pattern engraving: 3D scanning of customer patterns for modeling, five-axis laser etching with controllable depth, covering relief, micro-patterns, and geometric designs.

·Ultra-fine mirror polishing / matte finishing: optional Ra0.01 high-gloss or Ra0.8 matte surface finish as per customer requirements.

·Comprehensive factory inspection: individual inspection of roundness, runout, temperature differential, hardness, and pattern depth; SGS material and dimensional test reports provided.

·Rust-proof vacuum sealed packaging: export-grade rust-preventive oil plus vacuum moisture-proof packaging, guaranteed rust-free for 6 months of ocean shipping.

·Plastic film packaging industry: suitable for high-speed embossing of CPP, CPE, LLDPE, PLA biodegradable films, and aluminum foil composite films, producing anti-slip textures, matte finishes, and breathable micro-perforated films. Preferred by European and Southeast Asian food packaging plants, with plasticizer corrosion resistance and stable production at 200m/min.

·Medical and hygiene nonwoven hot-rolling field: used for spunbond, spunlace, and SMS composite nonwovens to emboss breathable micro-patterns and three-dimensional channel patterns for disposable masks, medical bed sheets, and baby diaper top sheets. At 260℃ hot-rolling, no fiber adhesion, with uniform breathable patterns, exported to leading nonwoven companies in Vietnam and Indonesia.

·Automotive interior and synthetic leather industry: PVC/PU synthetic leather and TPO automotive instrument panel skins with genuine leather grain, pebble grain, and brushed anti-slip textures. High wear resistance ensures no whitening or pattern shallowing over long production runs, cooperating with automotive interior manufacturers in Turkey and Mexico.

·Building and decorative materials: PVC wall panels, ABS decorative sheets, and composite wood flooring with wood grain, marble textures, and anti-slip diamond patterns. Large-diameter heavy-duty roller bodies withstand high-temperature, high-pressure board embossing without deformation.

·Optical and electronic films: micro-embossing of light guide plates, release films, and lithium battery separator films requiring micron-level precision and strict temperature control, meeting the high standards of Japanese and Korean new energy and optoelectronic material customers.

·Paper and flexible packaging: three-dimensional embossing of premium gift cards, kraft paper, and napkin paper, resisting paper pulp filler abrasion with strong three-dimensional patterns, long-term supplier to European and American paper packaging brands.

Exclusive Core Parameters:
The roller body adopts high-quality alloy steel including standard 42CrMo and 9Cr2Mo, with 34CrNiMo6 integral forged blank available for diverse working conditions. The roller surface is strengthened by self-developed laser-cladded nano-graphene composite coating, achieving stable working hardness of HRC 60–65 and excellent wear resistance, supporting continuous processing mileage up to tens of millions of meters. Adopting precision perimeter-drilled flow channel structure, the roller ensures uniform heat distribution with full-roller temperature difference within ±0.8℃. It features a maximum continuous safe operating temperature of 260℃ and a short-term peak temperature of 280℃. The minimum pattern processing spacing is 0.2mm with unified pattern depth tolerance controlled at ±0.003mm. The standard coating thickness ranges from 0.08mm to 0.15mm, providing outstanding anti-corrosion and anti-wear performance. The long-term operating radial runout is stably controlled within ≤0.004mm under continuous high-temperature working conditions.

Industry Standard Specifications:
Roller outer diameter ranges from Φ80mm to Φ1200mm with effective embossing working width from 300mm to 3600mm. It supports dual heat exchange media including circulating thermal oil and cooling water, with a maximum flow channel safe pressure of 1.6MPa. Standard multi-grade surface roughness includes Ra0.1 high-gloss, Ra0.4 general-purpose and Ra0.8 matte. The applicable production line speed is 20–220m/min. All products comply with ISO9001 quality management system, ISO14001 environmental management system, SGS material test and CE safety certification, ensuring stable and qualified factory performance.
